Figure 1: Simple transfer node.
Heinz Spiess
EMME/2 Support Center, CH-2558 Aegerten, Switzerland
March 1992
When assigning a transit network with EMME/2, the basic results are the volumes on the transit segments and the boardings/alightings at the transit stops. Means to produce line-to-line transfer matrices at transfer nodes are not provided as a standard result output.
In this paper we show how such line-to-line transfer matrices can be computed for selected transfer nodes, without changing the assignment results. This is done with the standard EMME/2 software , by using a special network transformation at the selected transfer nodes. Details of this transformation are discussed and we show how the process has been automated by implementing it as a macro. The method is illustrated with an example from the Winnipeg standard demonstration data bank.
In the conclusions we discuss how this methodology can be extended to model other complex situations which are not covered by the standard model.
This paper was presented at the 1st European EMME/2 Users' Conference, London, April 1992
When modelling transit networks, the basic results provided by the transit assignment in the EMME/2 software package are the volumes on the transit line segments, as well as the boardings and alightings at each transit stop. Of course, other information is also computed during the transit assignment, such as the number of initial boardings and final alightings at nodes, the auxiliary link volumes (e.g. pedestrian movements) and the various OD time component matrices.
These standard results cover the need of the great majority of transit planning applications. However, in certain applications it is not sufficient to know the total number of transfers at each transfer node, but it is necessary to assess the number of trips that transfer at a given node from one particular line (and direction) to another. This means that instead of just the total number of transfers at a given node, a line-to-line transfer matrix is needed. Ideally, such a transfer matrix could be computed for each transit node in the network. But this would amount to a huge quantity of data, in general requiring orders of magnitude more storage space than is needed for the standard assignment results. For the Winnipeg standard demonstration network, there are 57'333 possible line-to-line transfers, but only 4'272 transit line segments. Given this and the fact that the number of possible line-to-line transfers at a node is the square of the number of lines stopping at the node (which by the way is not restricted in EMME/2), it is clear that these transfer matrices are not provided as a standard result in EMME/2. However, in practice it is most always necessary to know the transfer matrices at only a few transfer nodes in the network (which ones, of course, depend on the particular issues that are to be studied in the application).
In the past, two types of simplistic approaches to solve this problem have been used in practice by some EMME/2 users.
In the first type of methods, the network topology is changed by splitting the transfer node into different nodes which are interconnected with a ``matrix'' of walk links. The big drawback of this approach is that this network transformation changes the route choice and, thus, the assignment results, since the lines at the transfer node can no longer be combined to reduce waiting time.
In the second type of approach, the network is left unchanged, but instead of a simple assignment, a series of assignments is carried out, mimicing a transit version of an ``additional options auto assignment''. In the first step of this process, a partial demand matrix representing the trip using a given line (or set of parallel lines) is extracted. In the second step, this matrix is assigned again to the transit network. The resulting boardings to and alightings from the other lines passing at the transfer node can then be interpreted as the line-to-line transfers between the selected line and the other lines calling at the transfer node. While this method does not change the route choice of the trips, it is very time consuming (several assignments needed), it gives only partial information relative to one line and it is only applicable if the line (or set of lines) in question are not used combined with other lines at the transfer node.
In the following sections, we will describe a new methodology designed to overcome the problems mentioned above. The approach allows to compute such line-to-line transfer matrices for selected nodes with the standard EMME/2 software release, as a by-product of a single standard transit assignment. This is done by a special network transformation at the transfer node, which does not alter the mathematical formulation of the transit assignment problem (i.e. yields the same results as before the transformation), but which renders the line-to-line transfers accessible as boardings and alightings of special transfer segments.
In a standard network, a transfer node is connected by incoming and outgoing links. Each link can carry an arbitrary number of transit line segments and allow a subset of auxiliary modes for accessing to or egressing from the transit lines. For the sake of simplifying the presentation, we assume that all lines actually stop at the transfer node and allow both boarding and alighting. This is illustrated in Figure 1 below:
Figure 1: Simple transfer node.
The key idea of our method is to ``blow up'' the transfer node, by adding dummy nodes, links and segments in such a way that:
This goal is possible to achieve by using the following
transformation: Let's assume that we have L lines, numbered
1 to L, passing at a transfer node N. In this case, the node N
is transformed into a linear sequence of L+2 nodes connected with
links of zero length, i.e.
.
All transit lines passing through T are newly routed through these
nodes with zero time segments.
is the egress node. All incoming line segments are connected
to this node, as well as are all outgoing auxiliary mode links. All lines
allow only alighting, but no boarding at this node. Thus, will be used
only by trips egressing at node T.
are the line specific transfer nodes. At node
, alighting
is allowed only for line
. For all other lines only boarding
is allowed at . Thus, will be used exclusively by
trips transferring from line to other lines. Since there are no auxiliary
modes connected to , no access and egress movements are possible.
is the access node. All outgoing line segments are connected
to this node, as well as are all incoming and outgoing auxiliary mode links.
All lines allow only boarding, but no alighting at this node. Thus,
will be used by all trips accessing the transit system at node T, as well
as by all trips passing T on auxiliary mode links.
Figure 2 below illustrates the transformation of the transfer node T.

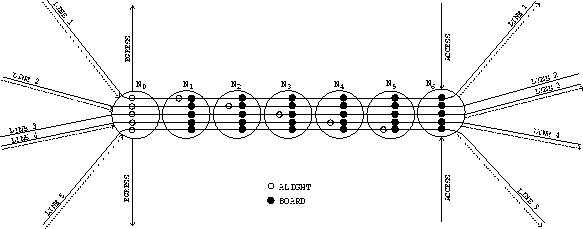

Figure 2: Extended transfer node structure
Note that the ``blown up'' transfer node allows for exactly the same set of
route choice strategies, with exactly the same costs associated to each. But
depending on the behavior of a strategy at the transfer node (egress, transfer
from line , access, and auxiliary mode passage), the strategy is forced
to use one particular node
.
While the proposed topological transformation of the transfer node is quite simple in principle, it is still not a trivial task to actually carry out the corresponding network modifications in EMME/2. Of course it is possible to do it interactively, but the task is cumbersome, repetitive and prone to errors. Hence, it is really desirable to automate this procedure. Since the topological transformation to be performed is based on a small set of simple and strict rules, it is possible to implement the entire procedure as an EMME/2 macro.
In the following, we describe a prototype implementation of such a macro. It is called transfer and is based on the Beta Release 5+ EMME/2 version of EMME/2 (a pre-release version containing some of the new features which will be part of Release 6). In particular the new possibilities of editing networks using batch input proved very useful when developing the macro.
The macro ``blows up'' a given transfer node, by modifying the node, link and transit line table of the current scenario. If the line-to-line transfers are needed for several transfer nodes, the macro can simply be applied repetitively. Here a brief description of the steps performed in the macro:
- . - are set to the proper values using the network calculator
module 2.41.
Note that since the macro will increase the network size, it is up to the user to make sure that enough space is still available in the scenario to hold the new network elements. Assuming that at node T, there are L incoming line segments and A adjacent links (incoming or outgoing), then the network transformation will require at most L+1 additional nodes, A+L+1 additional links and L(L+1) additional line segments.
Once the macro has terminated the scenario a transit assignment can be performed normally and all the display and analysis tools can be used as usual. Since all dummy nodes that are used for exploding a transfer node are located on top of the original transfer node, it suffices to select only those links that are outgoing from ``real'' network node, in order to obtain the same network plots as before transformation.
Note that the current implementation of the macro imposes some conditions on the network used:
. If the transit
times on these segments do depend on the auto times, those times should be
copied to a user data item before a transit assignment and the transit time
functions should be adjusted accordingly. . If the
volume-delay
functions on these links do depend on the transit vehicles, those transit
vehicle volumes should be copied to a user data item before a auto assignment
and the volume-delay functions should be adjusted accordingly.Once the transit assignment has been performed, the line-to-line transfers are available as boardings and alightings at the dummy nodes. Since in this form they are not easily accessible, a second functionality has been embedded in the same macro transfer. It is used to collect the informations from the dummy segments and to transform them into a nicely formatted report of the line-to-line transfer matrix. This report is annotated with the transit line names and the directions (">" or "<"). An example of the report is given in the next section.
The following example output was generated using the standard EMME/2 Winnipeg demonstration data bank.
Since in the Winnipeg network the transit times depend on the auto times, those were copied into a link user data item and the transit time functions were modified accordingly.
Then the macro transfer was run twice in a row, adding the line-to-line transfer structures to the nodes 423 and 454. Figure 3 shows the details of the line itinerary around node 423 before running the macro.

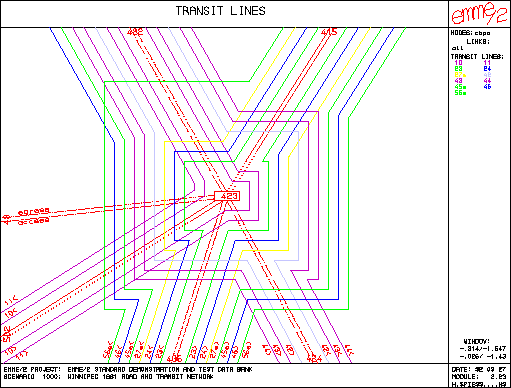

Figure 3: Line itineraries at transfer node 423.
Figure 4 shows the transfer structure at node 445 generated with the macro. In order to graphically display the structure, the macro was called with the option to ``stagger'' the dummy nodes, instead of ``hiding'' them behind the transfer node.

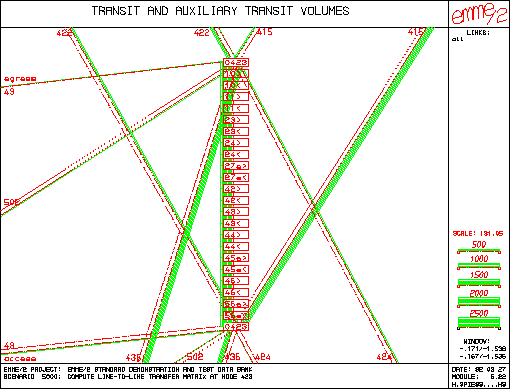

Figure 4: Transfer structure at node 423.
Next the standard assignment was run again on the modified network and the resulting transit segment volumes were compared with the original ones, in order to verify that the route choice had not changed. Note that very small changes can occur in the volumes; they are due to different rounding in the assignment process and different handling of ex-aequo situations. In this case, the volumes were identical for all practical purposes, the largest volume difference being only about 1 trip.

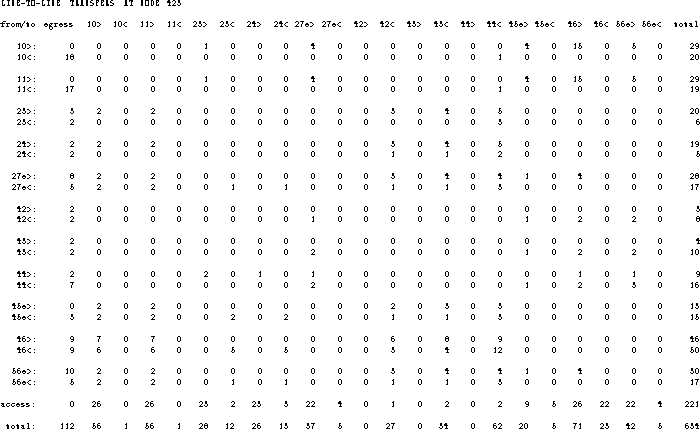

Finally, the macro transfer was run again, this time using the functionality to generate a report of the transfer matrix at nodes 423 and 454. The report obtained for node 423 is shown below. The column egress denotes trips which alight at node 423 and leave it through an auxiliary transit link. The row access denotes trips that get to node 423 through an auxiliary transit link and then embark on a transit line. The other rows and columns are labels with the corresponding transit line name and a direction indicator (">" or "<").
We have shown that the computation of consistent line-to-line transfer matrices is theoretically possible, and also practically feasible, with the standard EMME/2 software release.
The macro we developed for this purpose has been written to be as independent of the specific application as possible. In specific contexts, however, it is possible to adapt the same ideas to particular project requirement. Instead of computing transfer matrices on the level of individual transit segments, it would e.g. be possible to compute aggregate transfer matrices by line, link or mode groups. Of course the more aggregate the resulting transfer matrices are, the smaller the required amount of computing resources.
The basic idea of adding this kind of additional structure at transfer points can also be exploited for other purposes than just the computation of detailed transfer information. Since the various types of transfers can now be channeled to different nodes, these can also be defined to have different characteristics, such as node dependent boarding times and wait factors. This could be very useful to build more detailed assignment models, by taking into account transfer specific fare rules (node specific boarding times) and timed transfers (node specific wait factors).
Aho, Kernighan and Weinberger (1988), The AWK Programming Language. Addison-Wesley Publishing Company.
INRO Consultants Inc. (1991), EMME/2 User's Manual, Release 5.0.
INRO Consultants Inc. (1992), EMME/2 Release Notes, Beta Release 5+.
Spiess and Florian (1989), Optimal Strategies: A New Assignment Model for Transit Networks. Transportation Research B, Vol. 32B, No. 2. pp83-102.
